uPVC Column & Casing Pipes for Deep Borewells

We are serving over 15+ state till now

Technical Specifications: Column & Casing Pipes (IS: 12818)

100% Virgin Raw Material | Submersible Borewell Solution | #NeverCracksUnderPressure

SOLID FIT & STRONG FIT

1. Solid Fit Column Pipes for Submersible Pumps

Type	Sizes (MM / Inch)	Pressure Rating	Lengths
Bell End	25mm (1") to 50mm (2")	12.5 & 18 kgf/cm²	5 Ft & 3 Mtr
Socket End	25mm (1") to 65mm (2½")	12.5, 15 & 18 kgf/cm²	3 Mtr & 5 Ft

2. Strong Fit Casing & Screen Pipes as per IS: 12818

Casing Product Type	Nominal Diameter	Series Tiers	Standards
Blue Plain Casing Pipes	1½" (40mm) to 8" (200mm)	Deluxe (3 Mtr) & Smart (Types A, B, C)	IS: 12818:2010
Blue Screen (Slotted) Casing	3" (80mm) to 8" (200mm)	Deluxe (3 Mtr)	IS: 12818:2010
Blue Ribbed Filter Casing	1¼" (40mm) to 6" (150mm)	Deluxe & Smart (3 Mtr)	IS: 12818:2010

BOREWELL ENGINEERING & DEPTH SELECTION GUIDE

How to Select Casing & Column Pipes for Your Borewell Depth

Groundwater depth, geological strata, and pump load recommendations for boring mistris, drillers, and agricultural stockists across Eastern India.

🛡️ MASTER SUBMERSIBLE GRADE 2X BURST TESTED

Submersible Column Pipes

Deep Borewells up to 1,000+ ft (Zero Compromise Virgin Polymer)

Column pipes me hum koi halki quality nahi banate! Ek hi uncompromised master quality jo kisi bhi national brand ko beat karti hai.

🔹 2X Hydrostatic Burst Pressure: Rated pressure se 2 guna pressure test pass.

🔹 Pressure Classes: 10 KGF, 12.5 KGF, 15 KGF, and 18 KGF high-torque variants.

🔹 Submersible Safety: 1,000+ ft deep borewell pump load & vibration resistant.

🔹 Jointing: Heavy-duty Bellan & Socket threading with leak-proof rubber ring.

🎯 Application: Heavy submersible pump installations in deep agricultural & commercial borewells.

Inquire Column Pipe Rates

🌊 5 TIERS FOR EVERY DEPTH IS 12818 CERTIFIED

Borewell Casing Series Comparison

Engineered Solutions for Every Soil & Depth Condition

1. SL Deluxe (IS 12818): Topmost ISI certified casing for deep 500+ ft rocky borings with high collapse resistance.

2. Smart Casing: Dukan ki #1 best-seller quality; deluxe aur standard weight options standard domestic borings ke liye.

3. Prime Casing: Specially engineered for ~200 ft boring depths; budget-effective & high life.

4. SD Deluxe: Economy ISI certified range price-competitive tenders ke liye.

5. PCC Casing: Khet-bari aur shallow boring me sabse economical tube-well solution.

🎯 Application: Borewell drilling contractors, agricultural tubewells, and commercial boring projects.

Inquire Casing Pipe Rates

🔒 DIRECT SALES DESK • BOREWELL DRILLERS & DEALERS

Need Factory Net Rates for Casing & Column Pipes?

Borewell drillers aur hardware dealers ke liye direct factory net rates aur truckload dispatch details WhatsApp par uplabdh hain: +91 9204857235

💬 Get Casing / Column Rates on WhatsApp

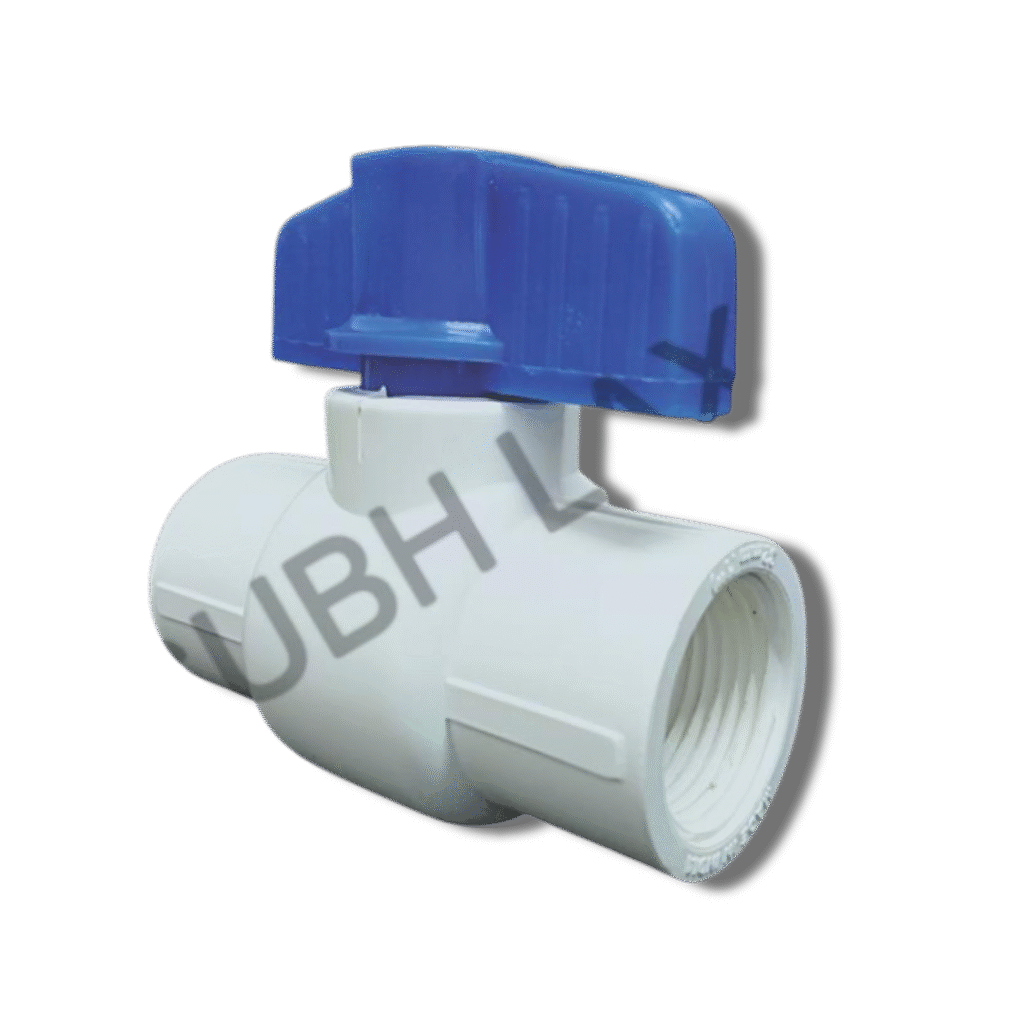

BALL VALVE SHORT HANDLE THREAD

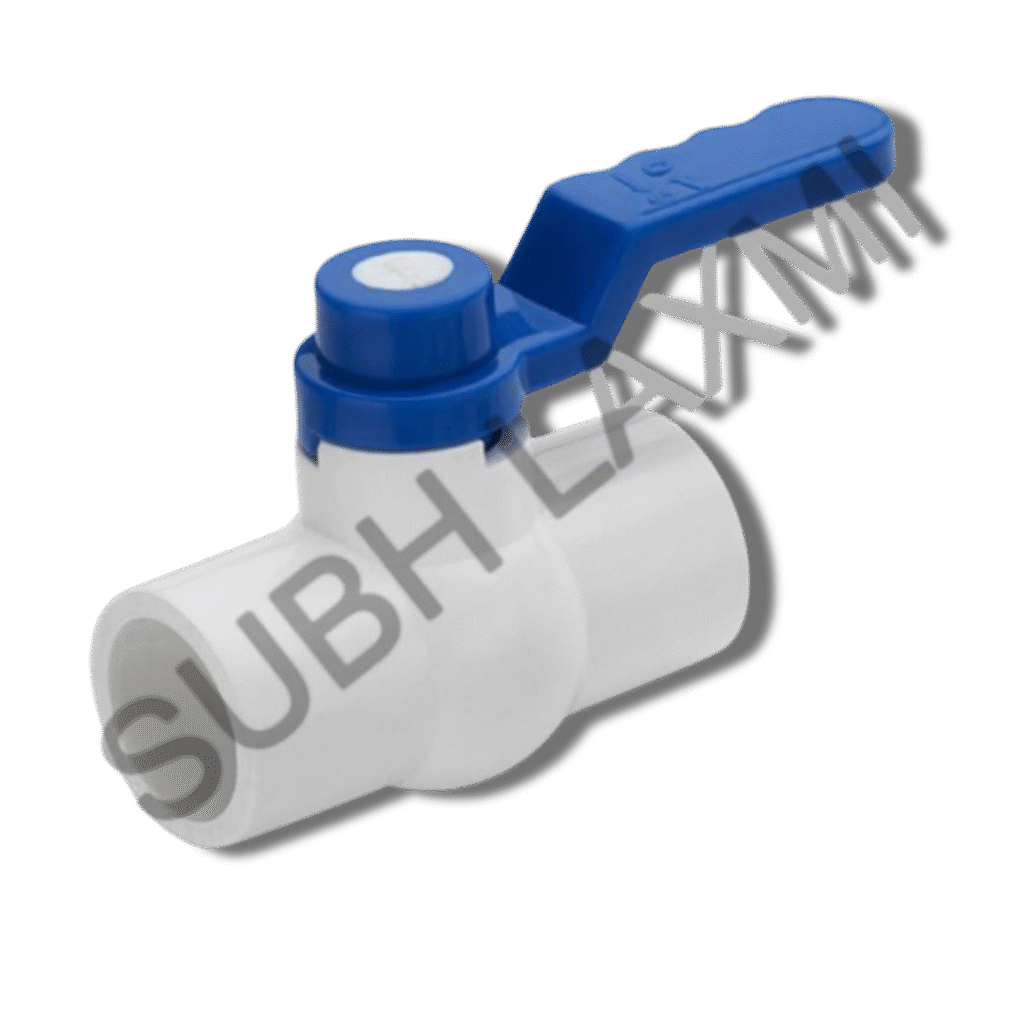

BALL VALVE LONG HANDLE

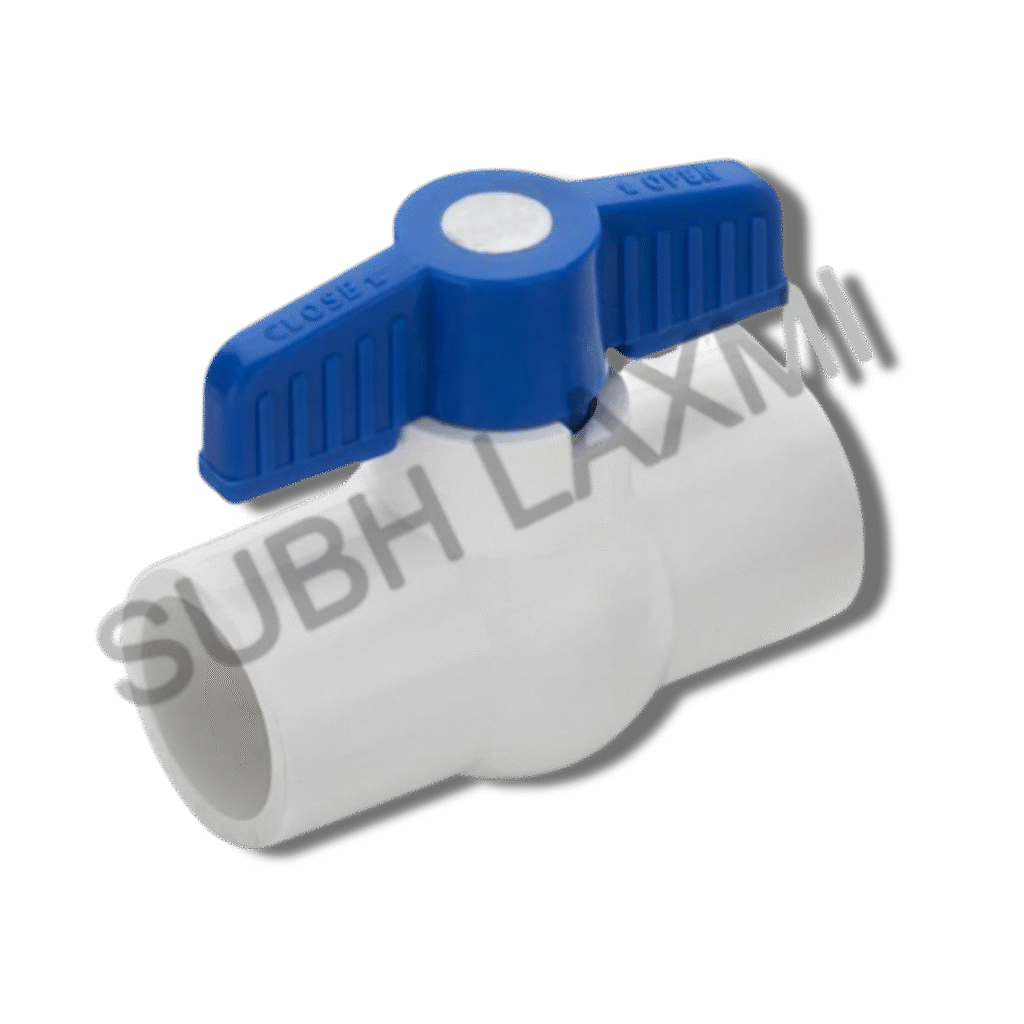

BALL VALVE SHORT HANDLE

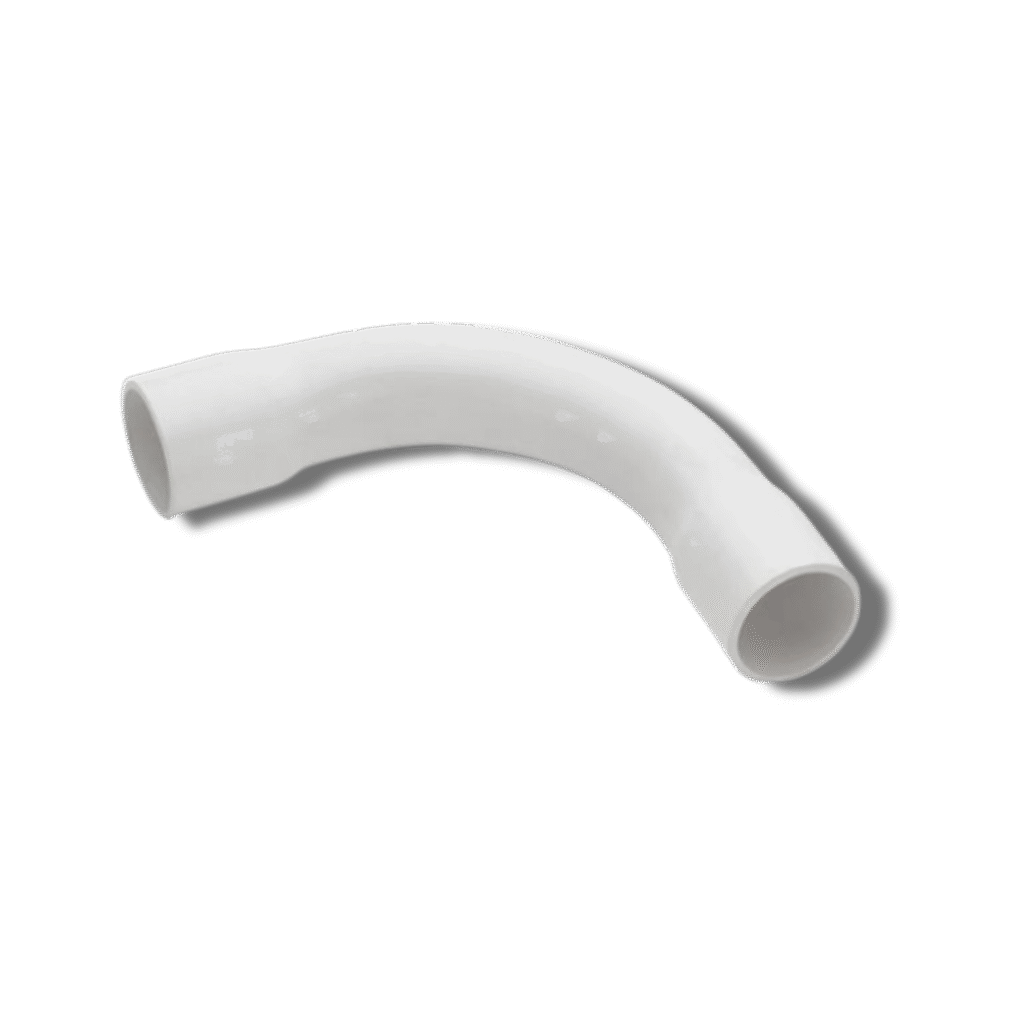

90 degree

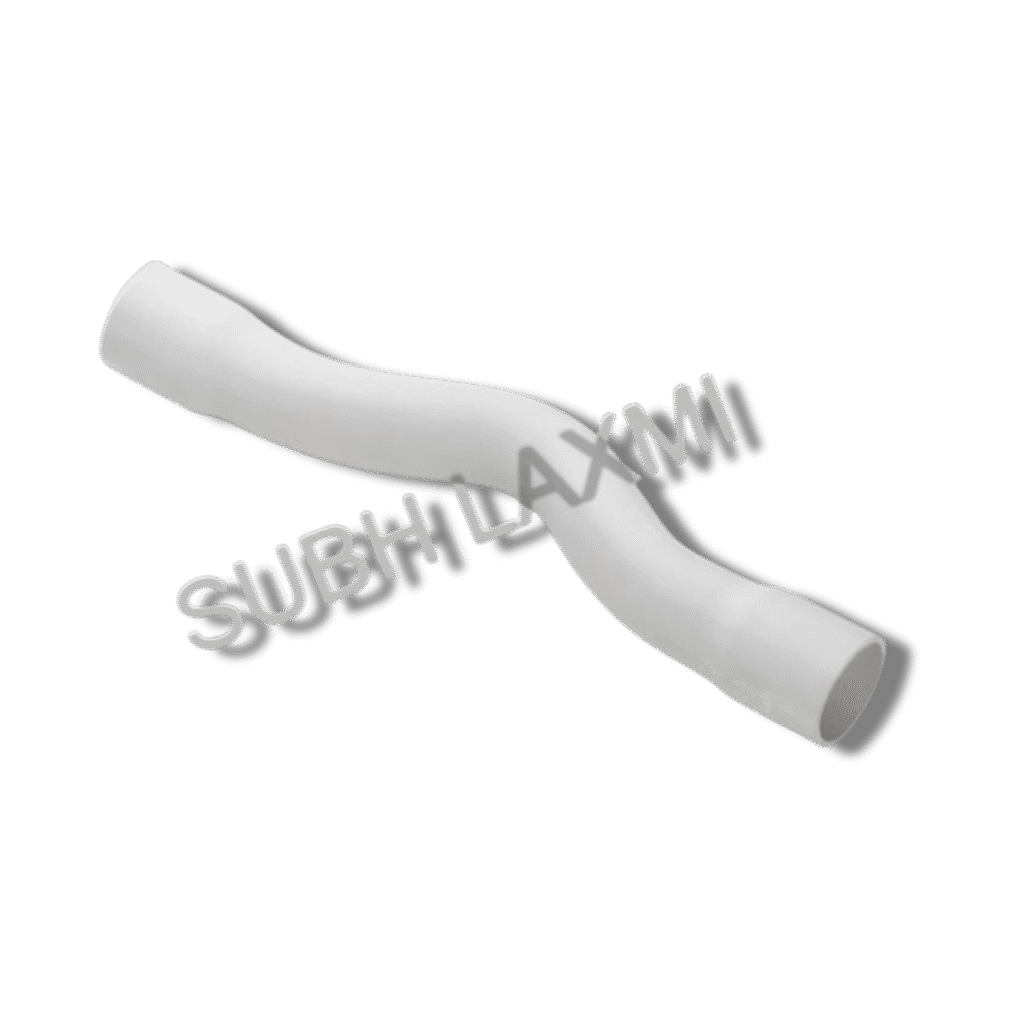

STEP OVER BEND

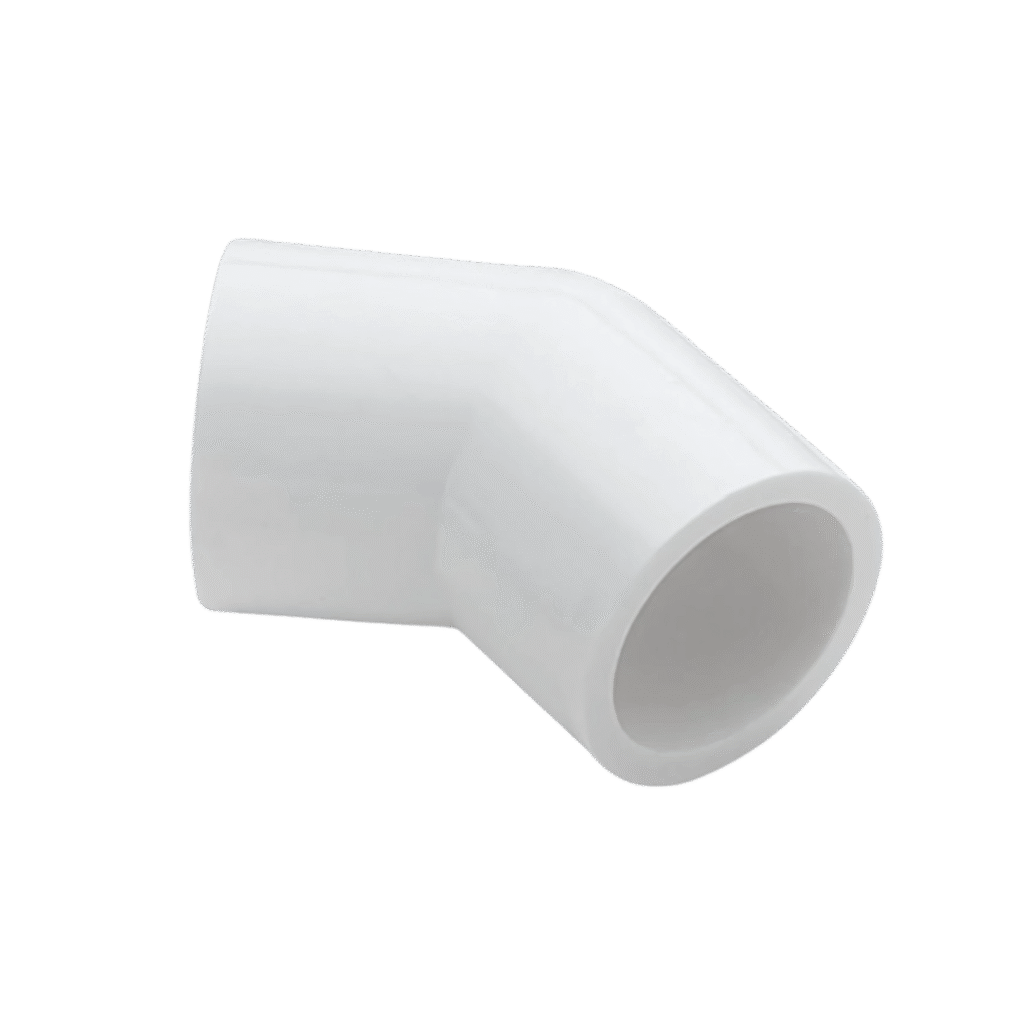

45 degree

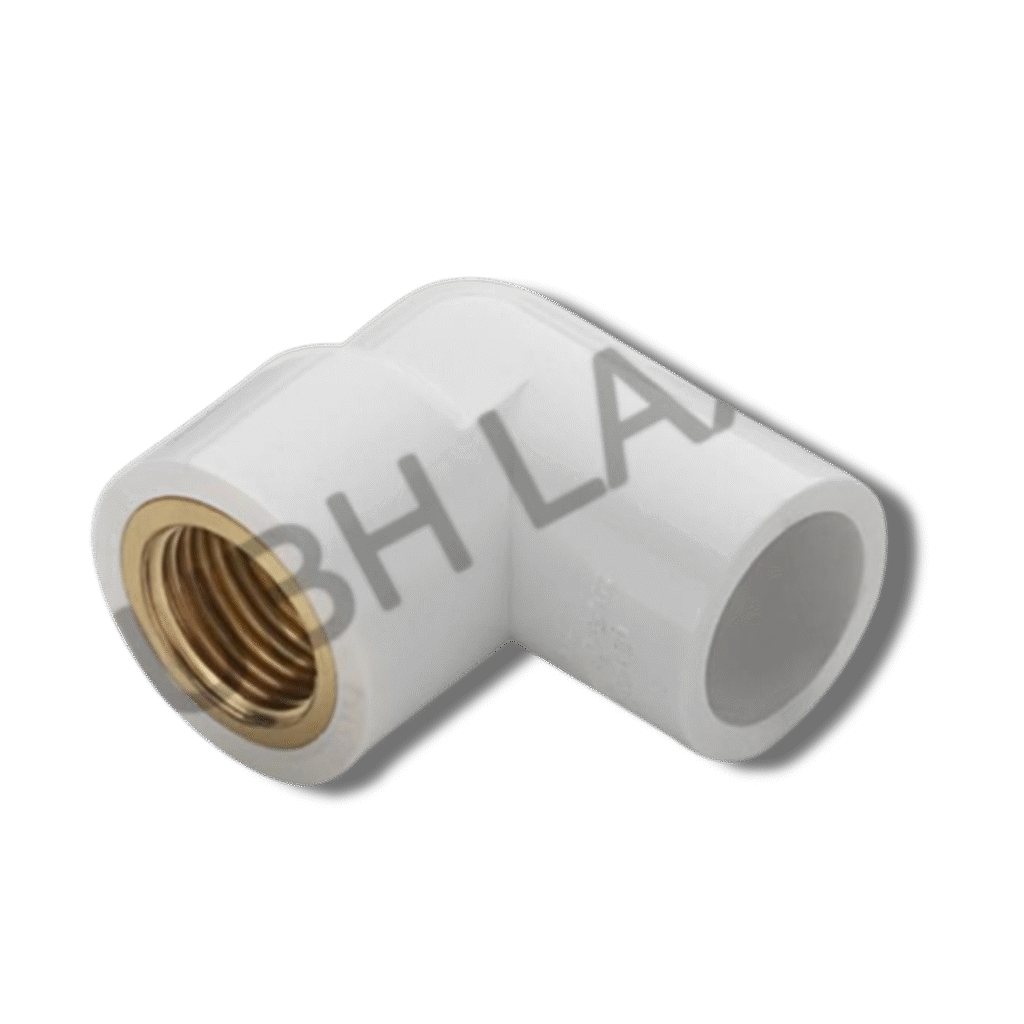

BRASS ELBOW

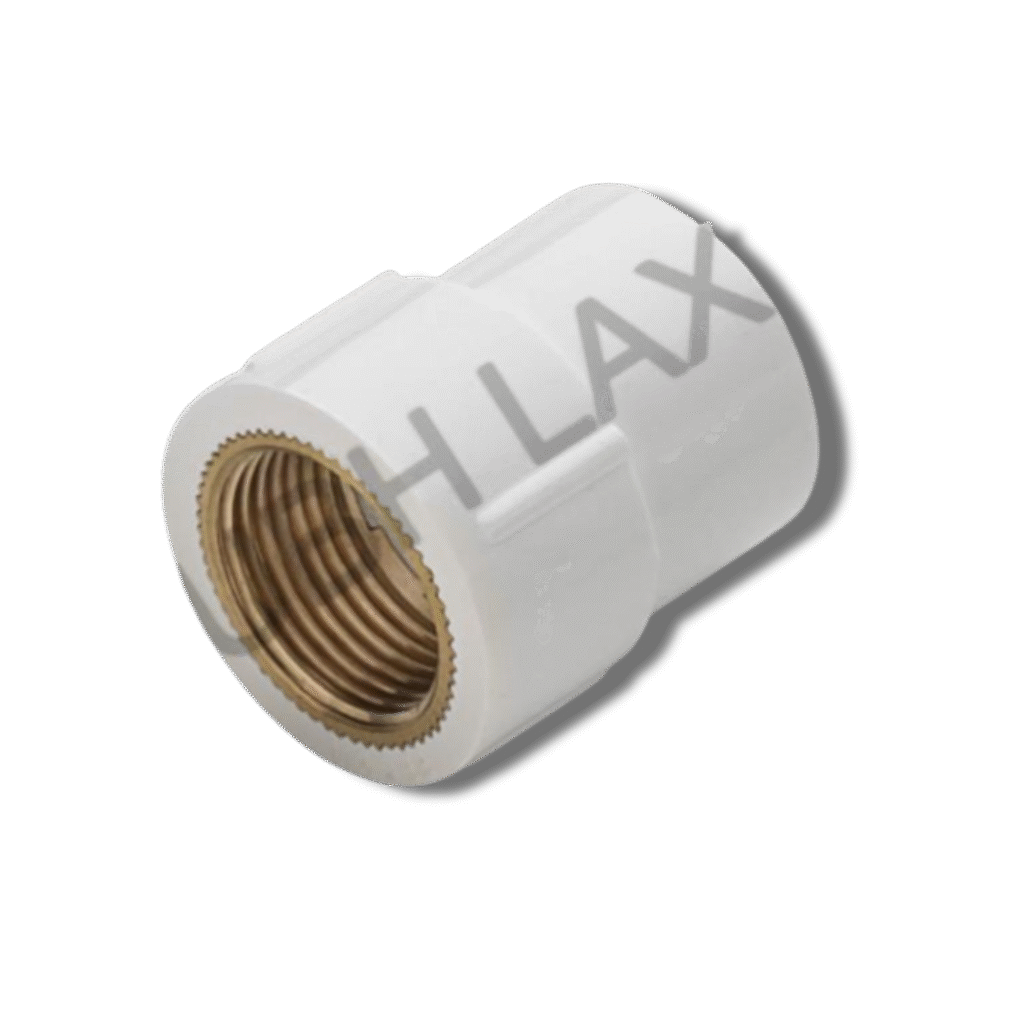

BRASS FTA

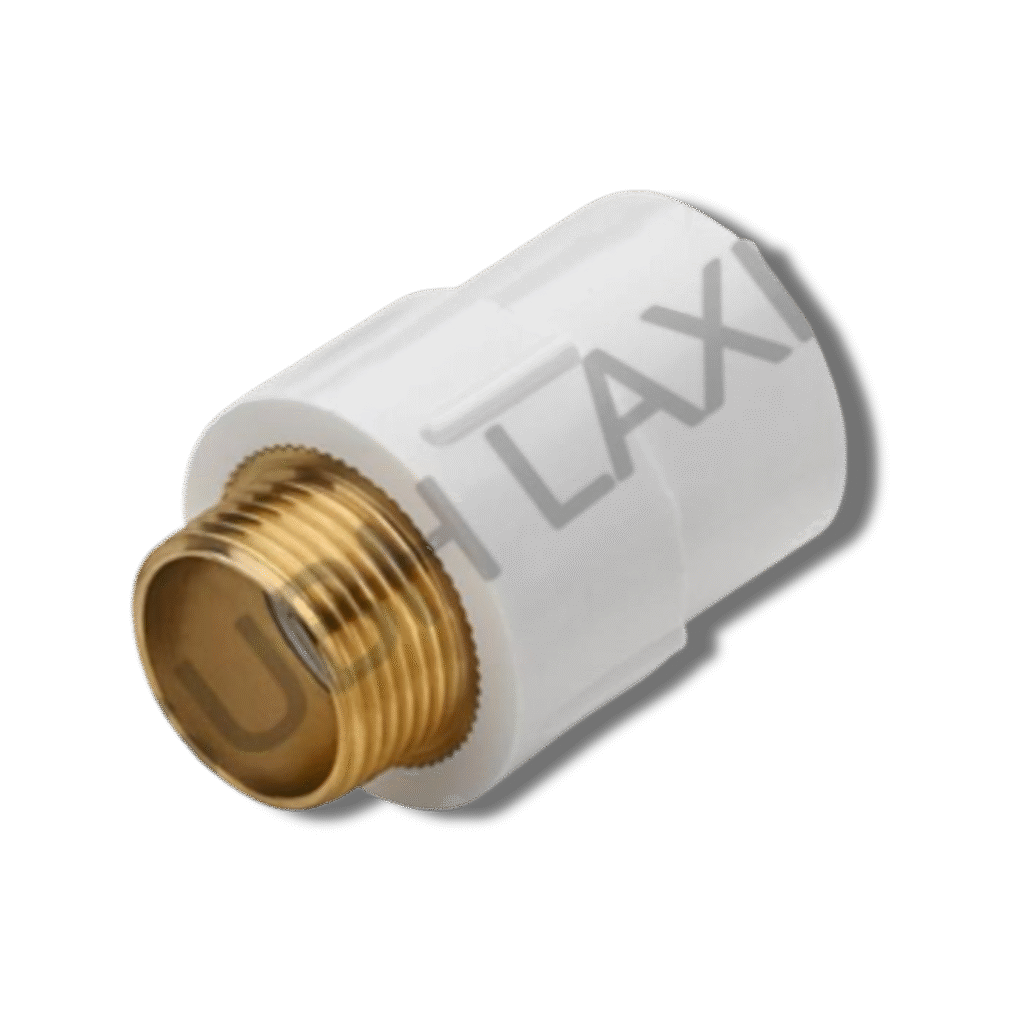

BRASS MTA

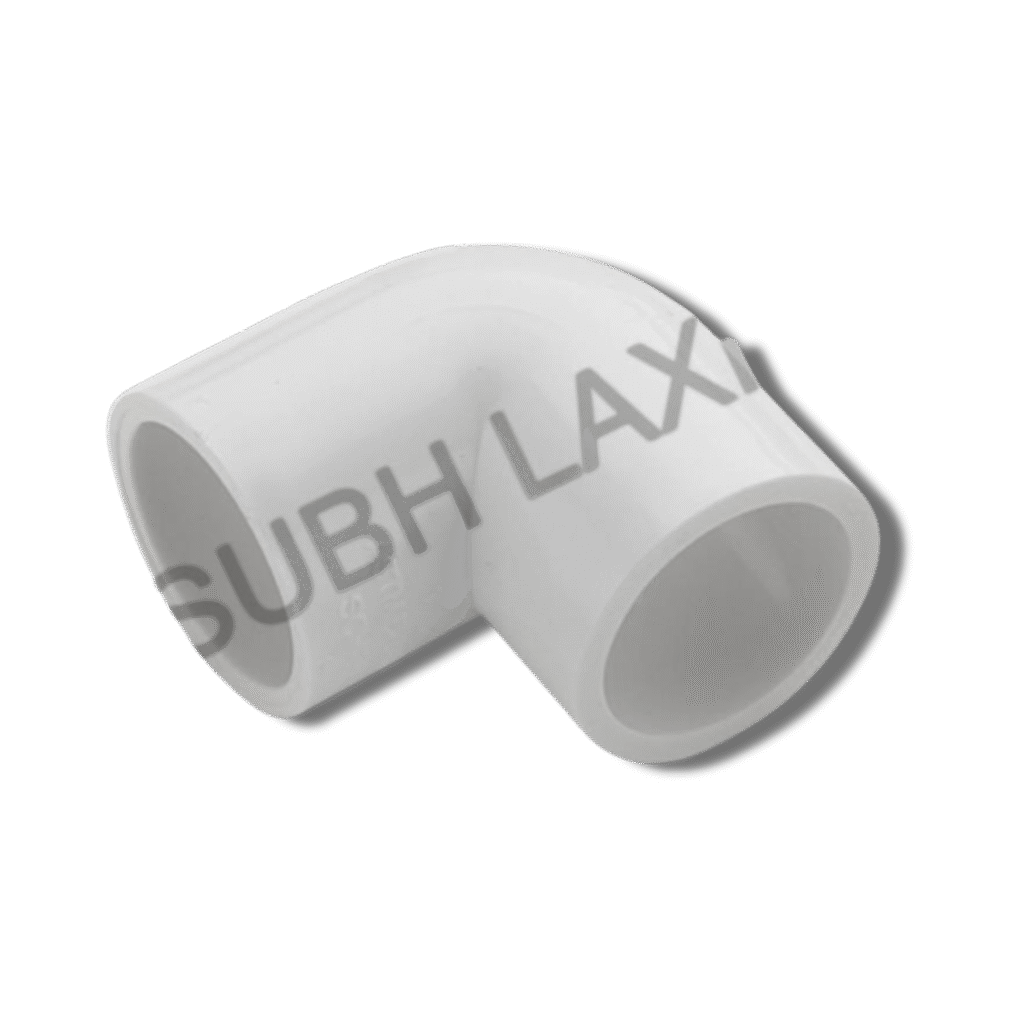

ELBOW

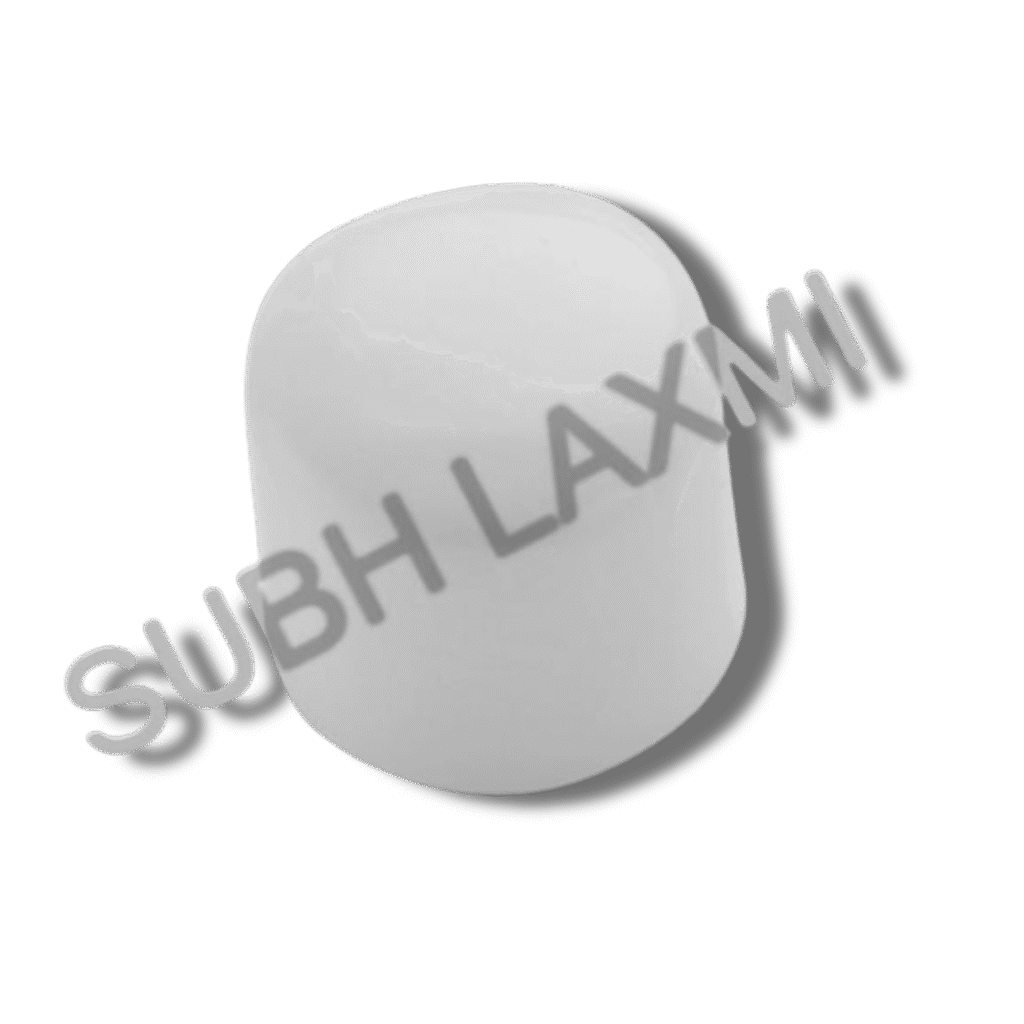

ENDCAP

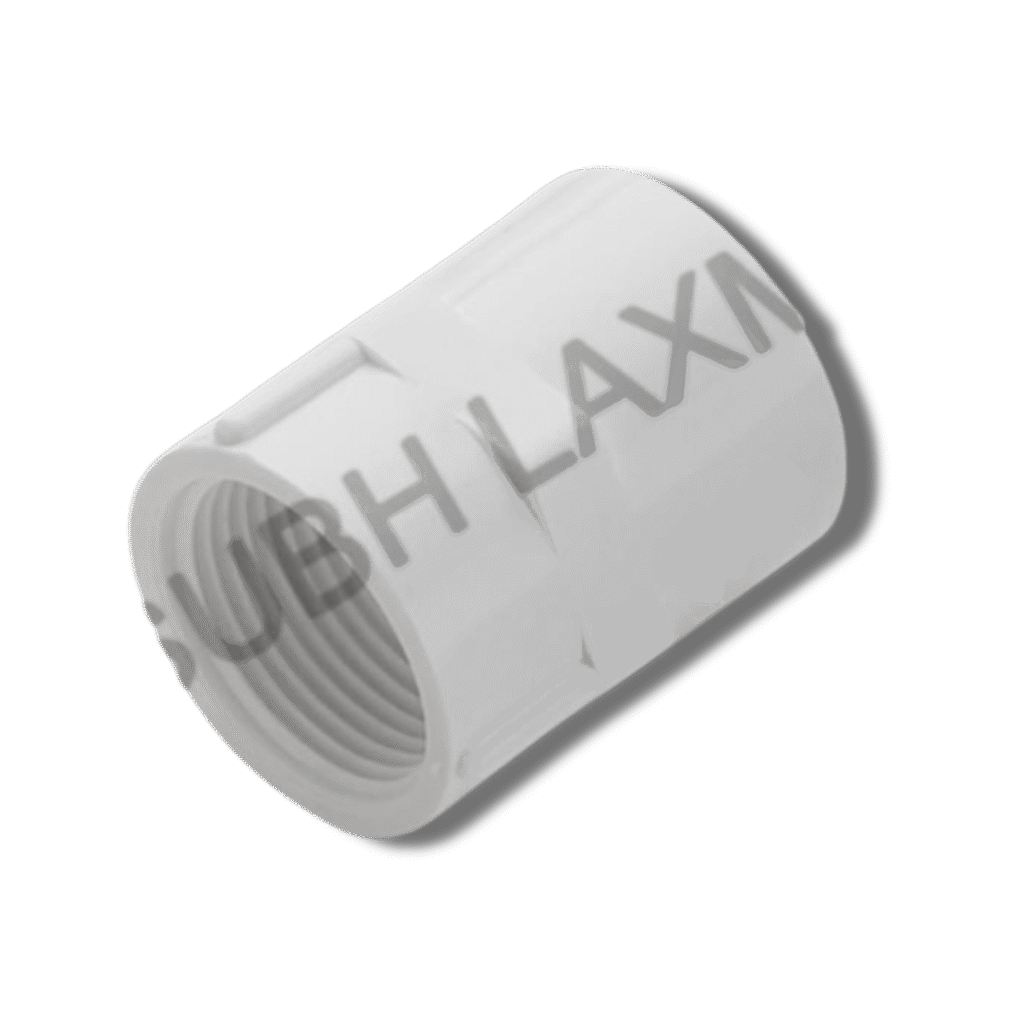

FTA

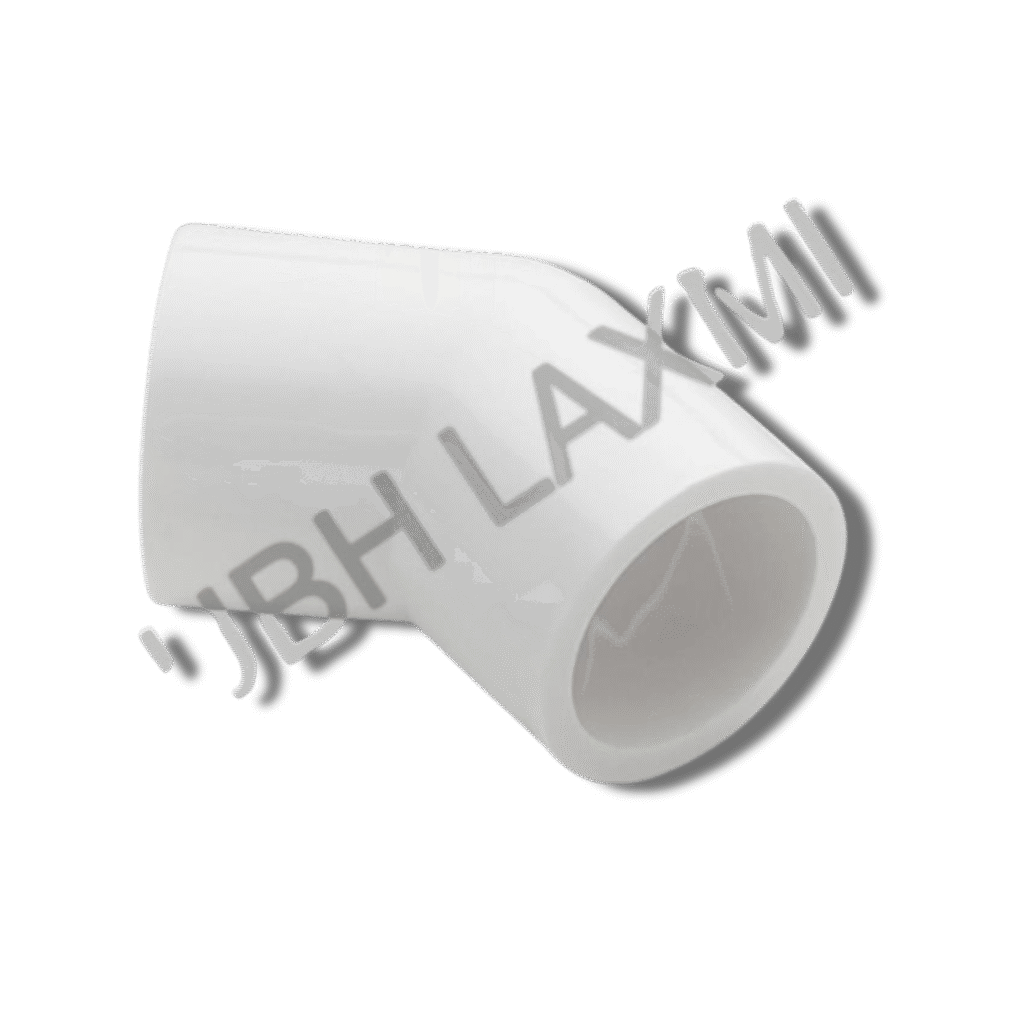

HALF ELBOW

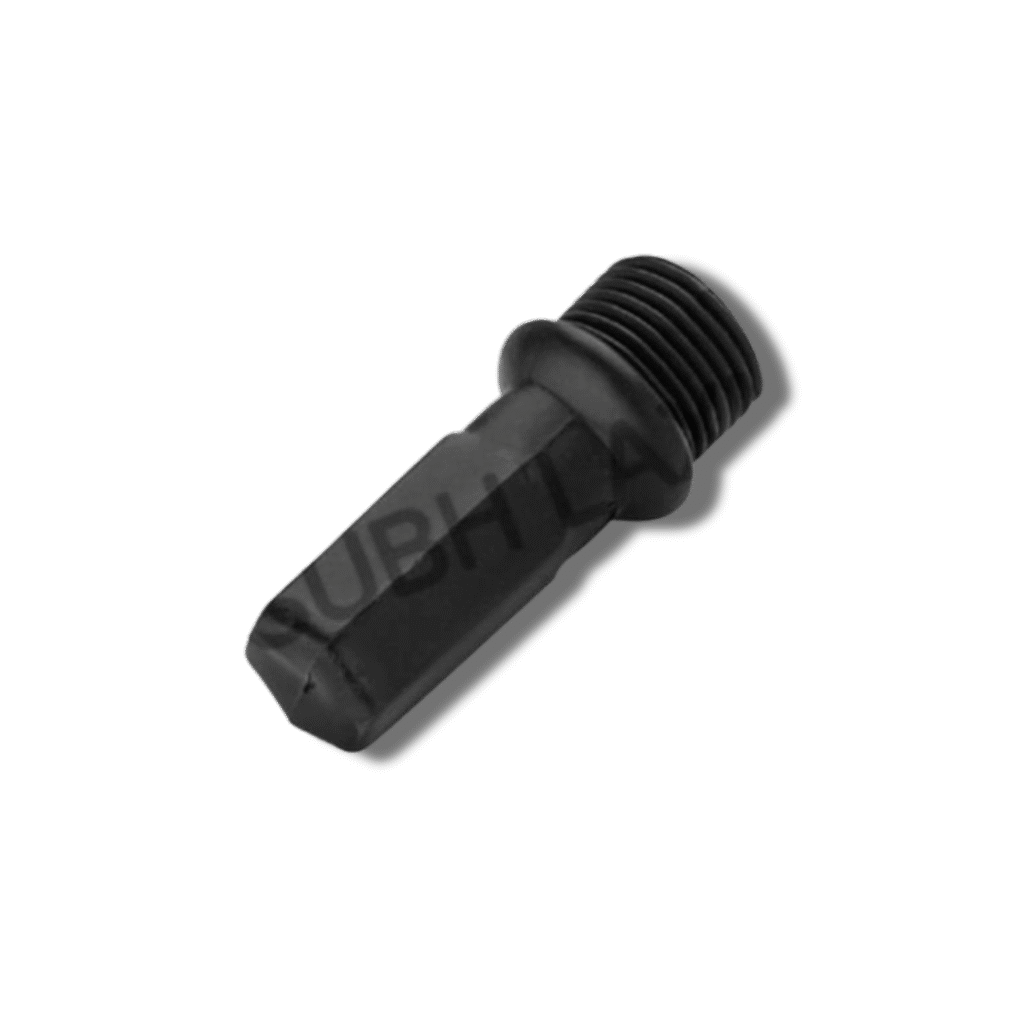

LONG PLUG

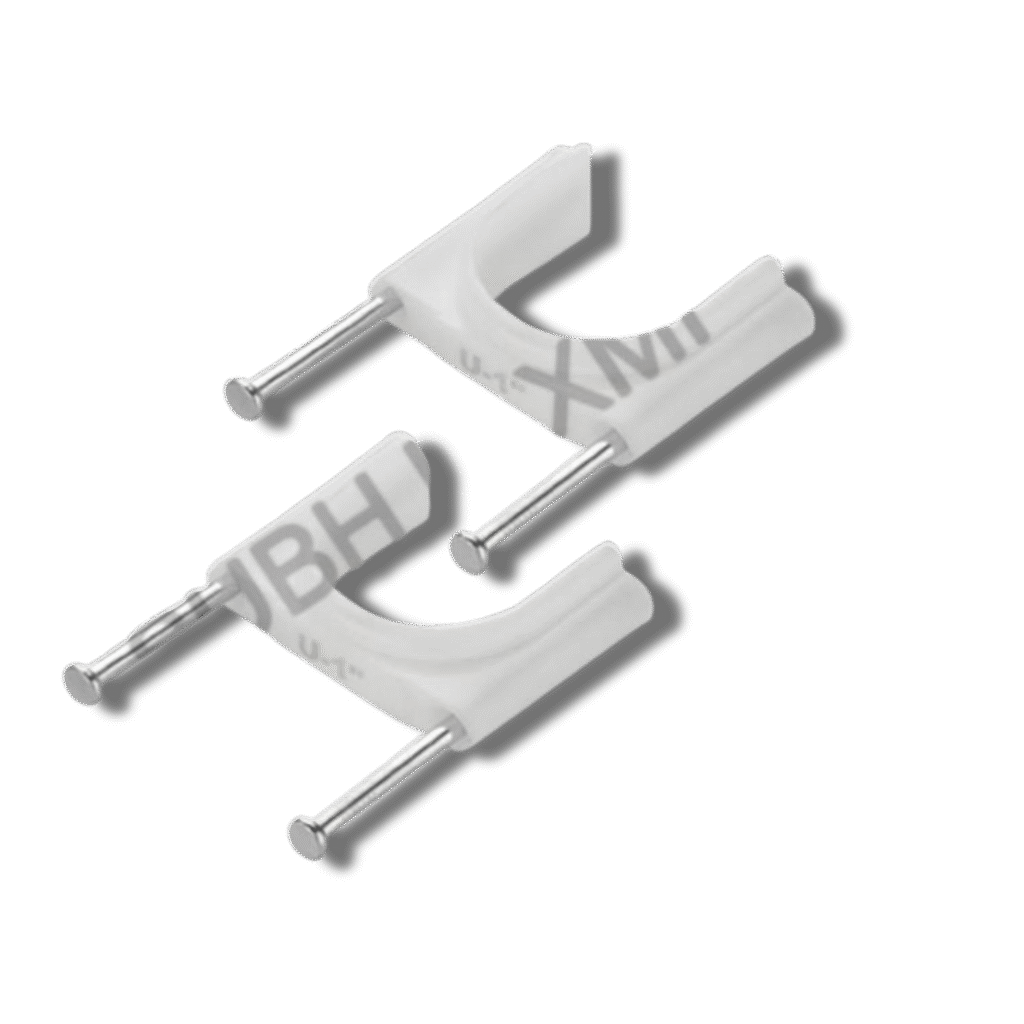

PVC CLAMP

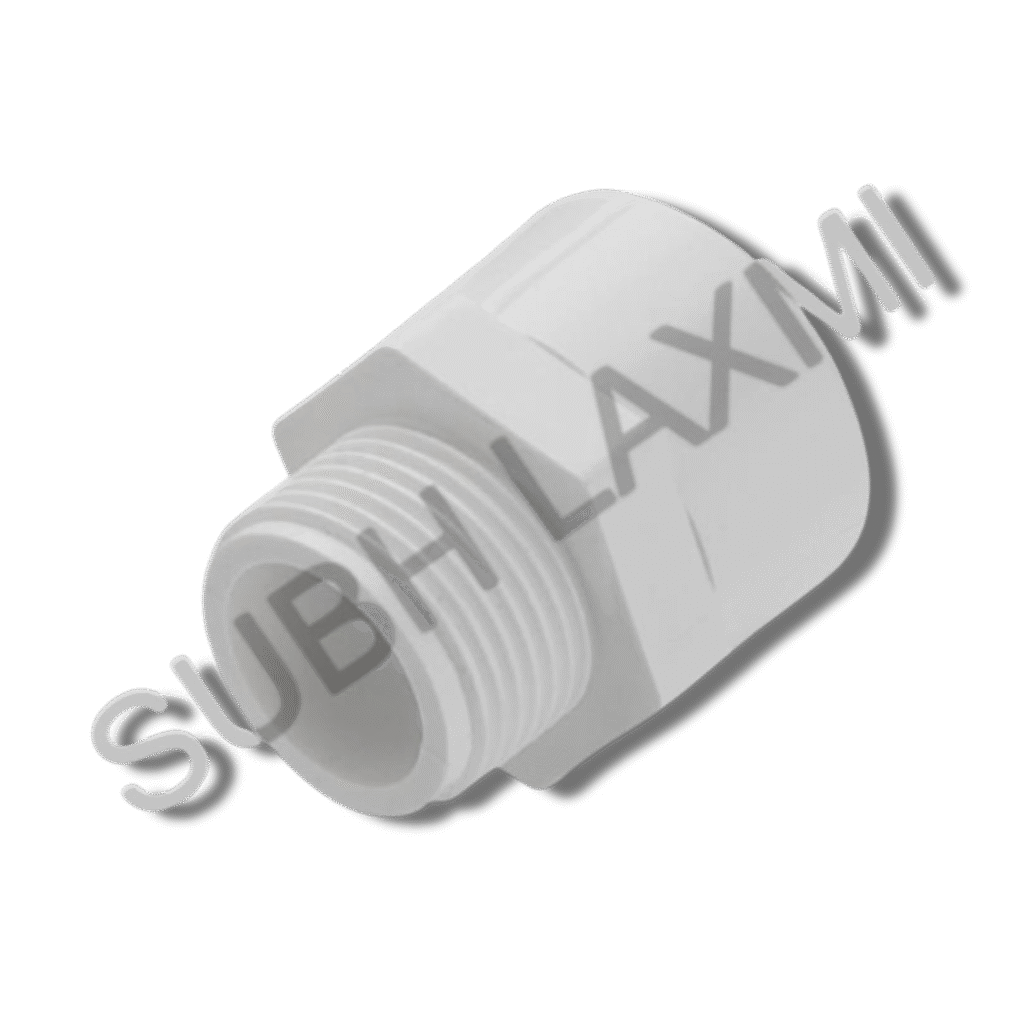

MTA

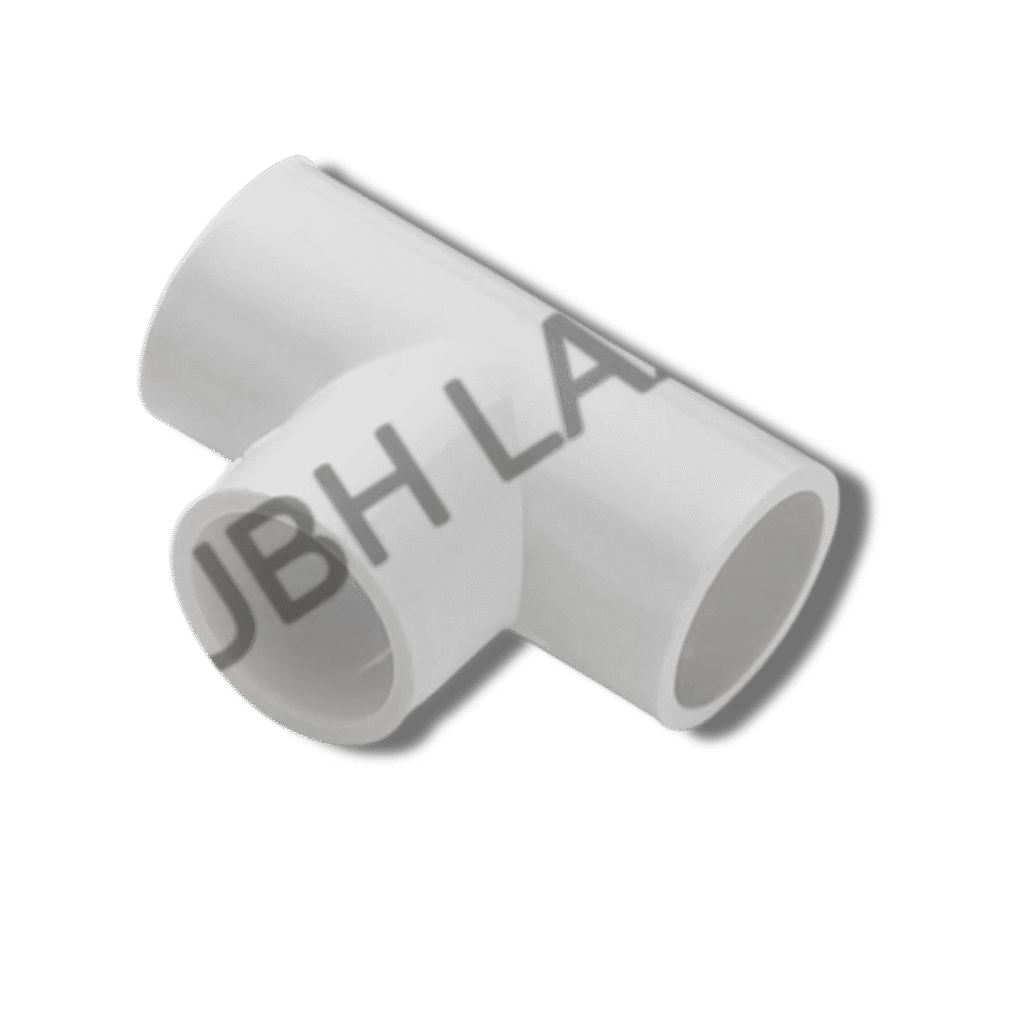

TEE

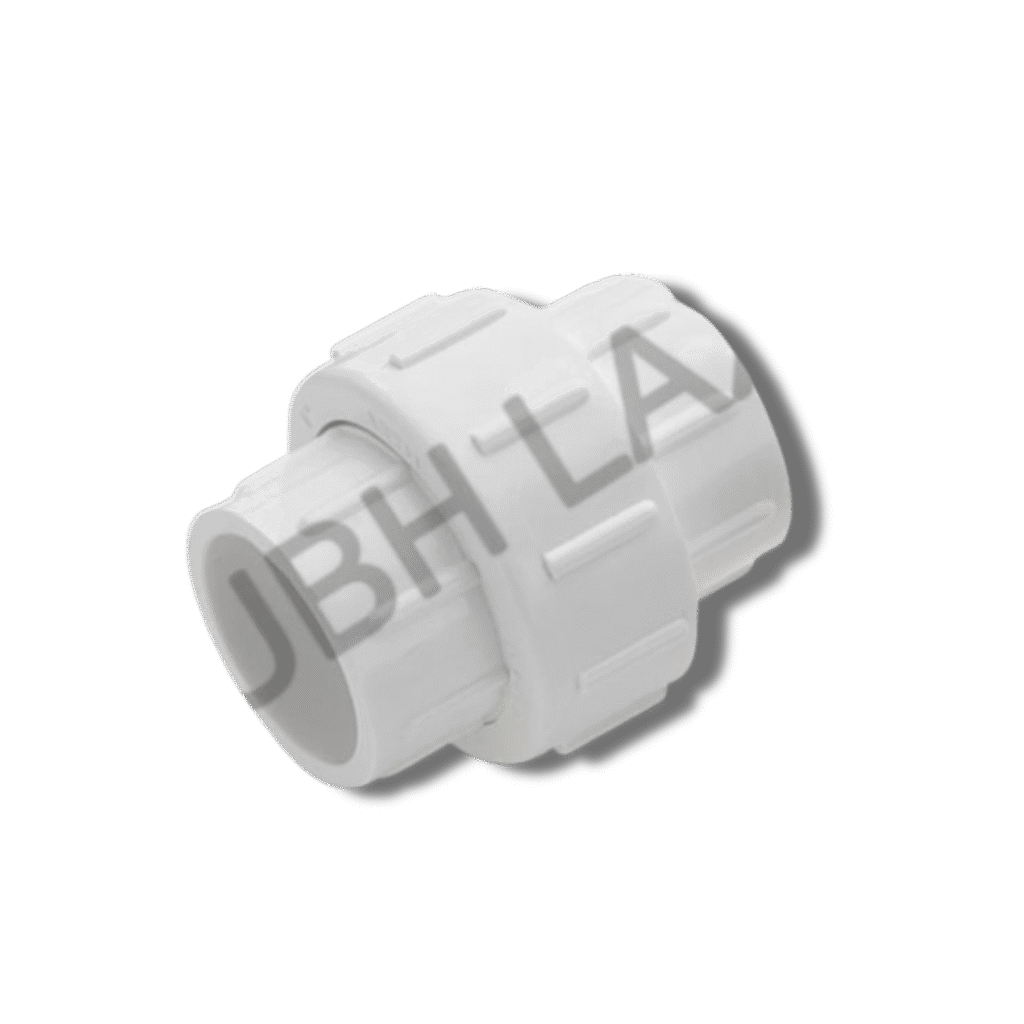

UNION

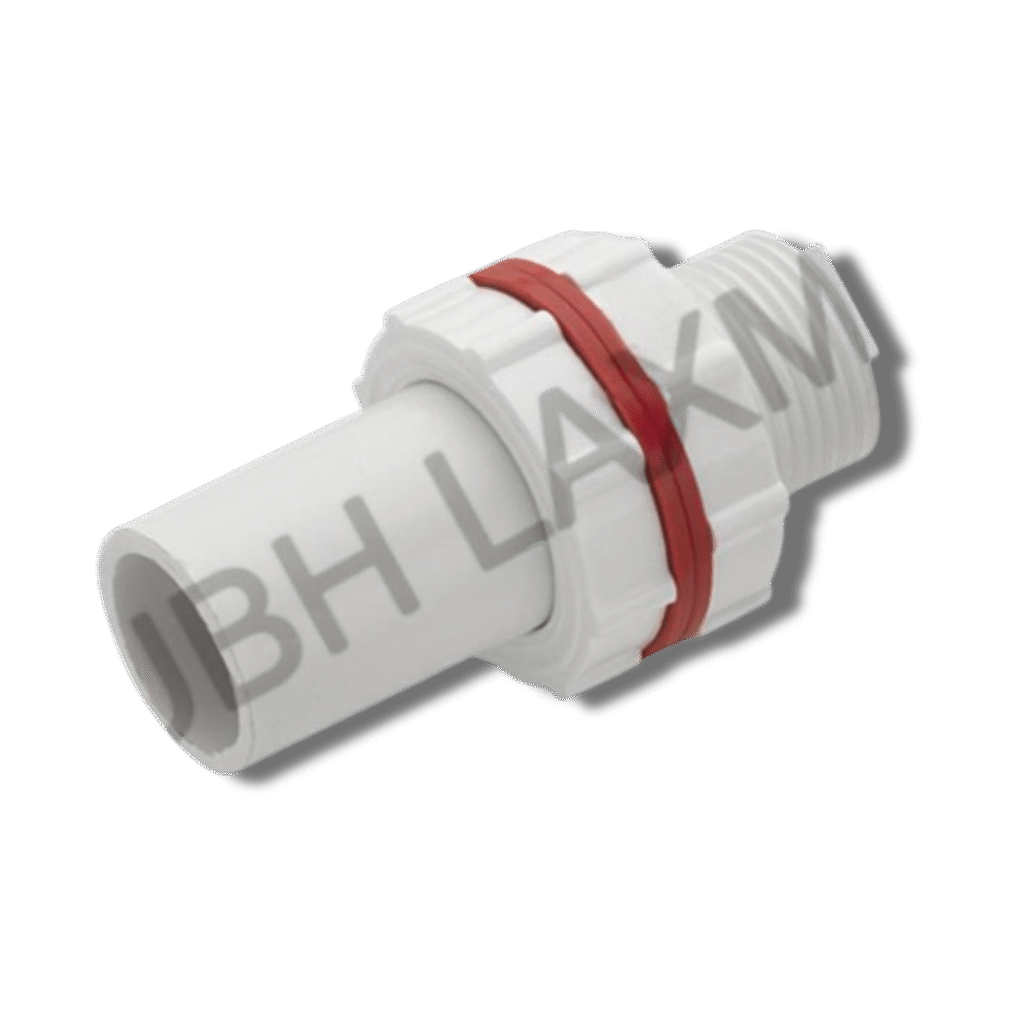

TANK NIPPLE PIPE

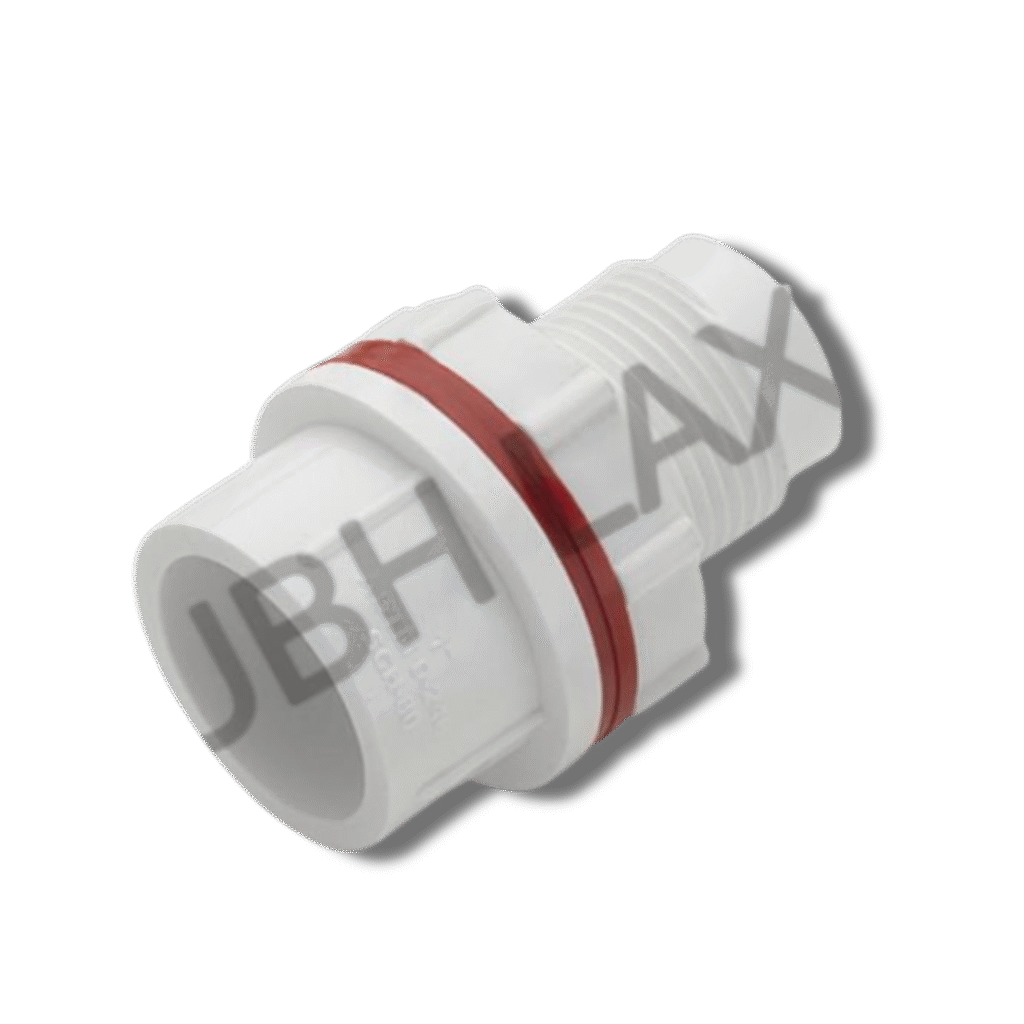

TANK NIPPLE SOCKET

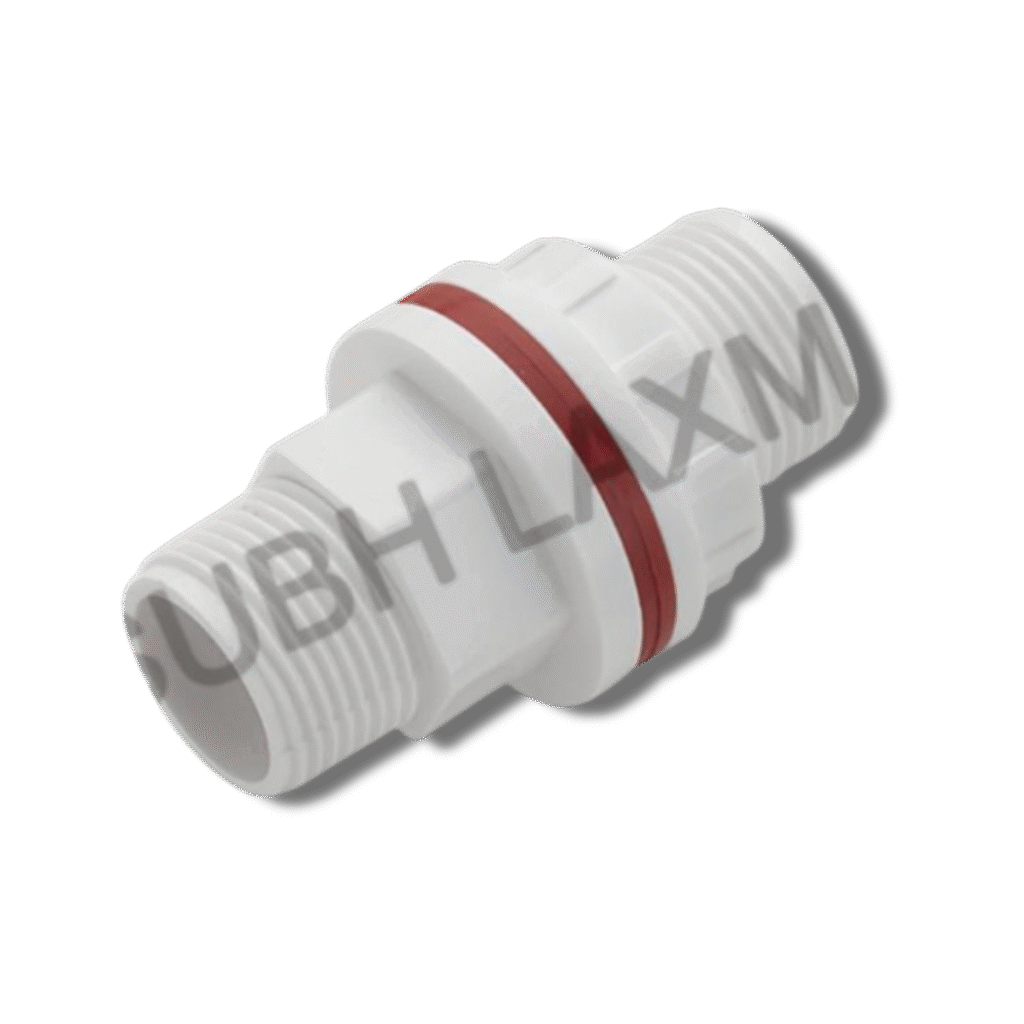

TANK NIPPLE THREAD

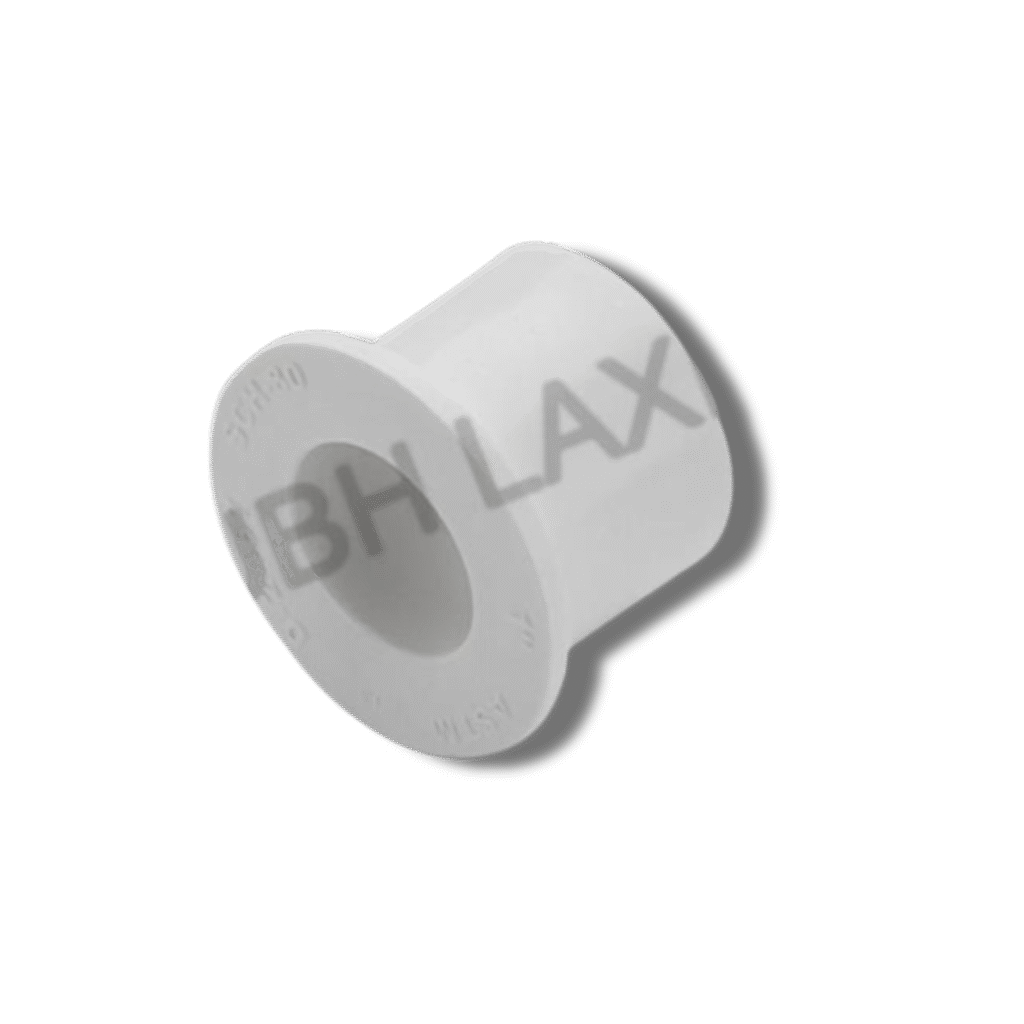

REDUCER BUSH

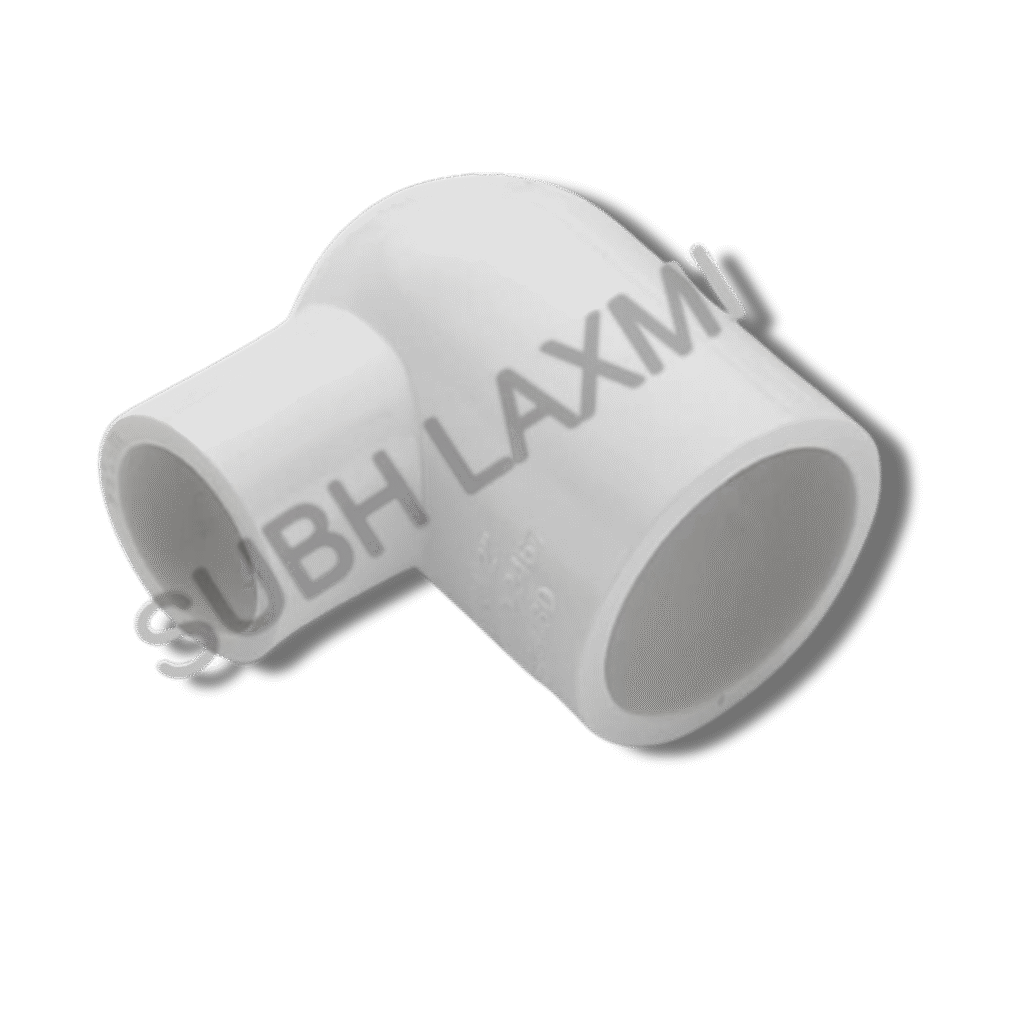

REDUCER ELBOW

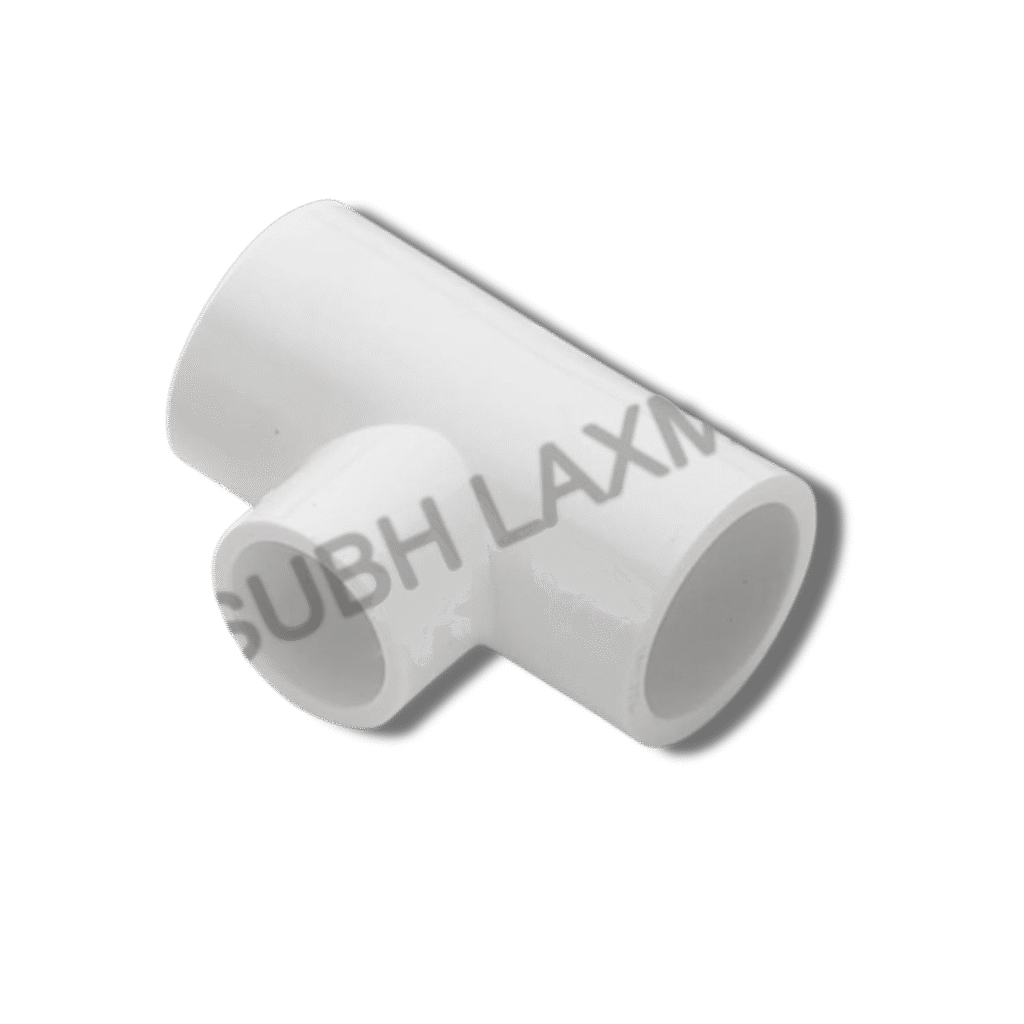

REDUCER TEE

PLAIN CASING PIPES SPECIFICATIONS


NOMINAL DIAMETER		OUTSIDE DIAMETER		OUTSIDE DIAMETER
Inch	mm	Min.	Max.	Min.	Max.
1.5"	40	48.2	48.2	-	-
2"	50	60	60.2	-	-
3"	80	88	88.3	-	-
4"	100	113	113.3	-	-
5"	125	140	140.4	-	-
6"	150	165	165.4	165	165.4
7"	175	200	200.5	200	200.5
8"	200	225	225.5	225	225.5
10"	250	280	280.5	280	280.5
12"	300	330	330.6	330	330.6

RIBBED & SCREEN CASING PIPES SPECIFICATIONS

		MEDIUM WELL CASING(RMS) PIPES		MEDIUM WELL CASING(PMS) PIPES
		MEDIUM WELL CASING(RMS) PIPES		MEDIUM WELL CASING(PMS) PIPES
NOMINAL DIAMETER		OUTSIDE DIAMETER		OUTSIDE DIAMETER
Inch	mm	Min.	Max.	Min.	Max.
1.5"	40	52	52.2	-	-
2"	50	64	64.2	-	-
3"	80	92	92.3	-	-
4"	100	117	129.3	-	-
5"	125	144	144.4	-	-
6"	150	169	169.4	-	-
7"	175	204	204.5	-	-
8"	200	229	229.5	225	225.5
10"	250	284	284.5	280	280.5
12"	300	334	334.6	330	330.6

uPVC COLUMN PIPES FOR SUMERSIBLE


COLUMN TYPE	BELAN TYPE	SOCKET TYPE
SIZE	25MM(1") TO 50MM(2")	25MM(1") TO 80MM(3")
PRESSURE(kgf/cm2)	12.5kgf/cm2 TO 21kgf/cm2	12.5kgf/cm2 TO 21kgf/cm2
DEPTH	Upto 600Ft.	Upto 900Ft.
